Distributed Control System

The UW5111 control module is the core component of the control station and the computing and processing center of the control station. In terms of hardware, it is composed of functional modules such as embedded industrial CPU modules, real-time data storage, redundant SNet drive units and redundant CNet drive units; in terms of software , responsible for coordinating and processing the data exchange and control operations of all functional templates within the control station, such as I/O signal processing, loop control calculations, network communication processing, redundant diagnostic interaction and other functions. Powerful data computing and processing capabilities and standard industrial-grade hardware quality ensure that various complex control strategies can be implemented quickly and stably in industrial sites.

The UW5411 200W power module from UWNTEK supplier provides two sets of completely isolated power outputs 5VDC and 24VDC, which are used to power the internal control modules, I/O modules, etc. of the control station.

China UWNTEK UW5341 32-Channel SOE Module realizes simultaneous 32-channel DI signal input and sequential recording of event occurrence times, with event resolution up to 1ms.

The 16-Channel Digital Output Module from UWNTEK incorporates its own over-current protection mechanism. In case of excessive current input resulting from internal faults, it activates its self-protection function. Once the fault is rectified, the module seamlessly resumes normal operation.

The UW5311 32-Channel Digital Input Module consolidates 32 channels of switch input, providing a comprehensive interface for digital signal acquisition.Channels are isolated from each other, and channel failure does not affect the normal operation of other channels

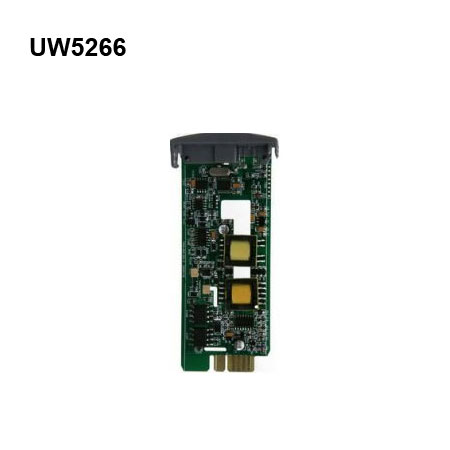

The UWNTEK high quality UW5266 analog output module implements the verification, latching, protection, and output of single-channel analog output data. According to the configuration requirements, under abnormal conditions, the data output can be maintained or the specified set value can be output and replaced online.
